Specifications
| General Information | |
|---|---|
| Brand Name | AZDOME |
| Model | M550 Pro 3-Channel Dash Cam |
| Product Type | UHD 4K Car DVR with GPS & 5.8GHz WiFi |
| Weight | 0.35kg (350g) |
| Certifications | CE, FCC, RoHS, WEEE |
| Warranty | 1 Year (365 Days) |
| Package | Original Package |
| Video Specifications | |
|---|---|
| Front Camera Resolution | Ultra HD 4K (3840 × 2160P) |
| Interior Camera Resolution | Full HD 1080P |

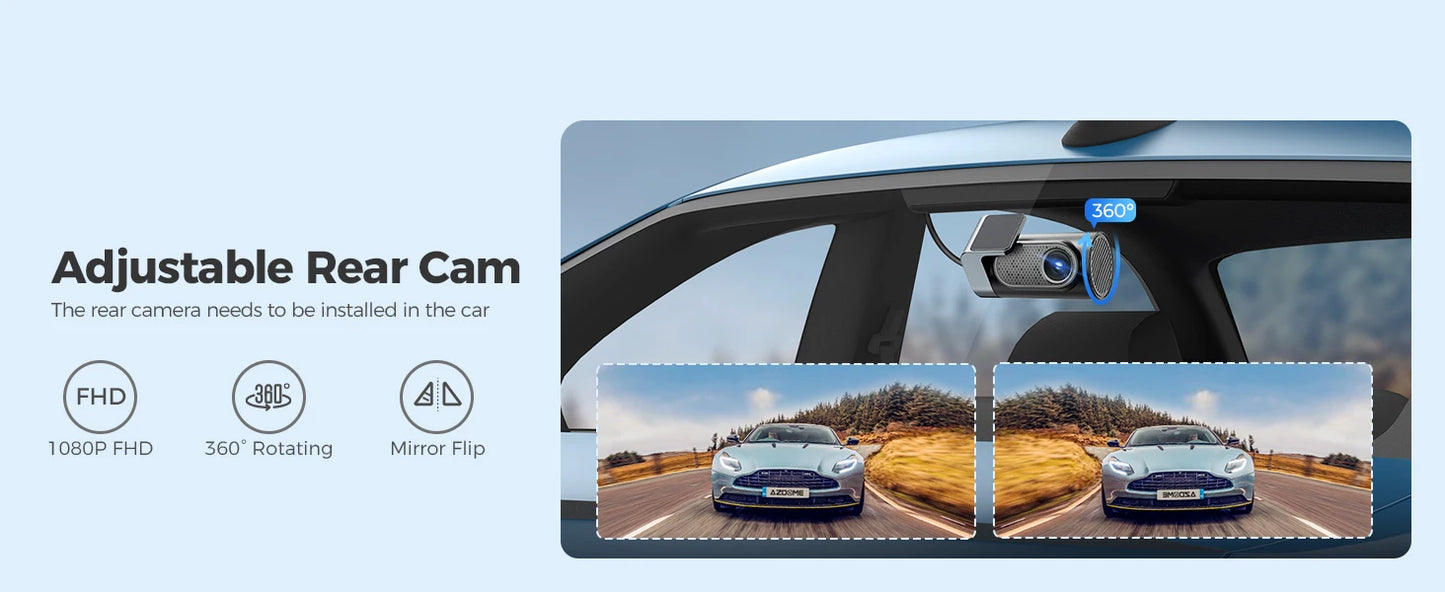

| Rear Camera Resolution | Full HD 1080P |

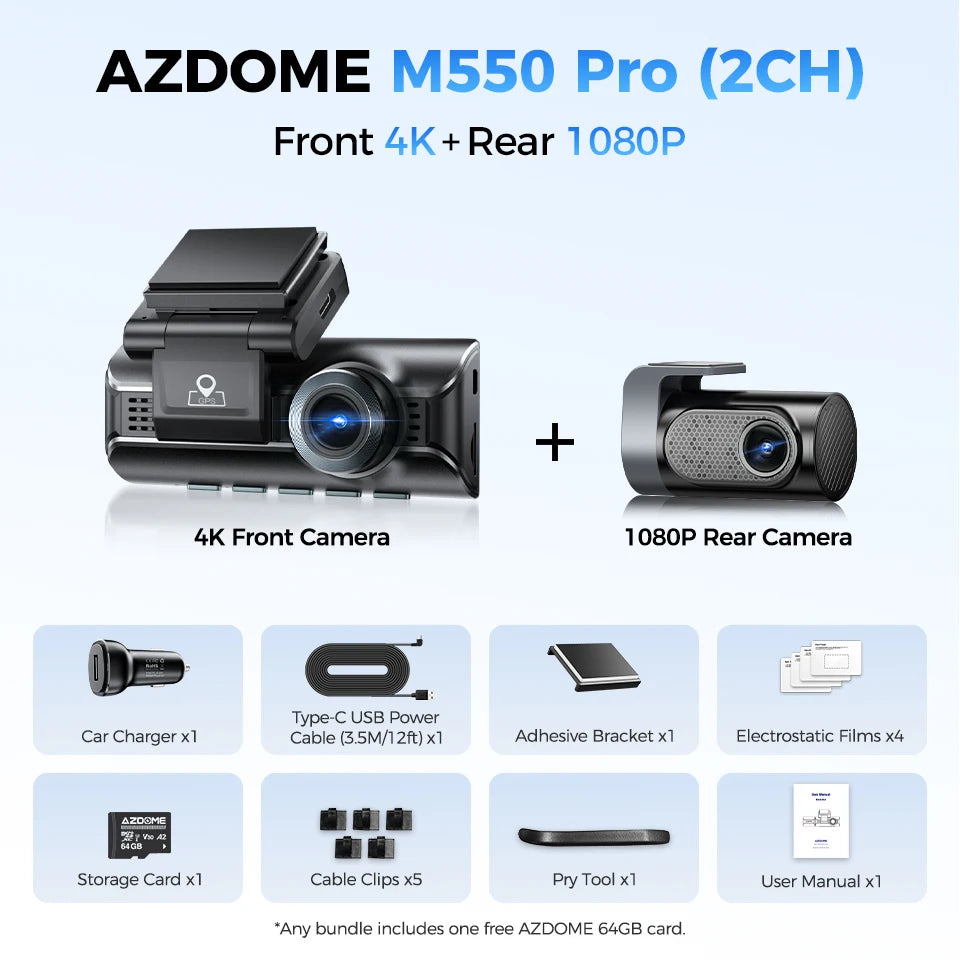

| 2CH Configuration | 4K Front + 1080P Rear |

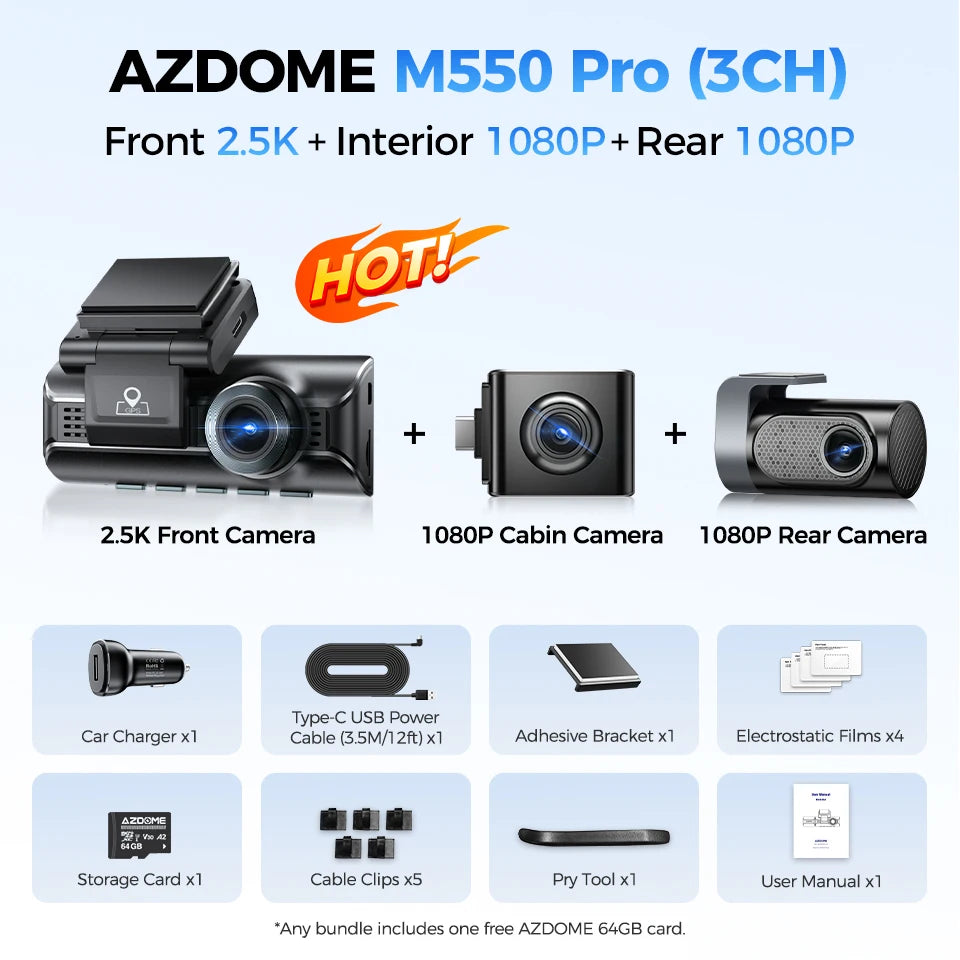

| 3CH Configuration | 2.5K Front + 1080P Interior + 1080P Rear |
| Video Format | MP4 (H.264 codec) |
| Frame Rate | 25 FPS (Max 30 FPS) |
| View Angle | 150° Wide Angle |

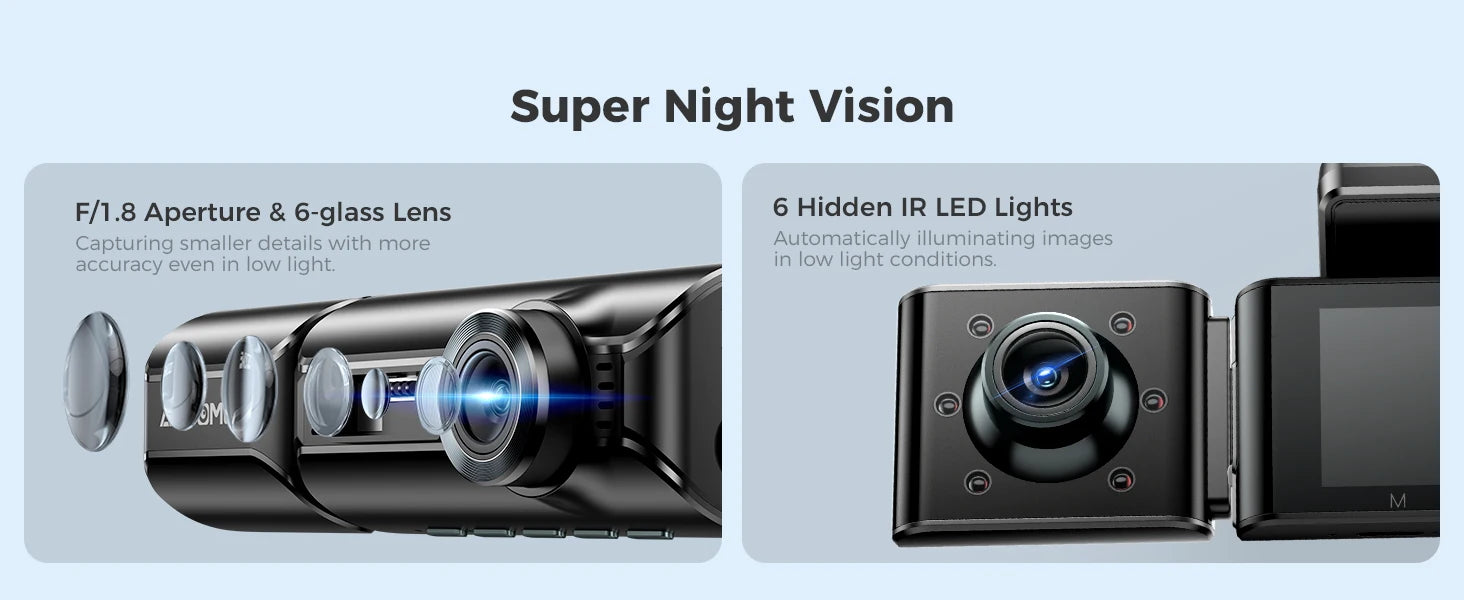

| Aperture | F1.8 |
| Total Pixels | 800 Megapixels |
| Display & Sensors | |
|---|---|
| Display Type | IPS Screen |
| Display Size | 3" - 5" (Model dependent) |
| Screen Ratio | 16:9 |
| Chipset | NOVATEK 8629G Processor |
| Imaging Sensors | GC4653, SC401AI, GC2053, SC223A |
| Touch Screen | No (Button controls) |
| Storage & Memory | |
|---|---|
| Included Storage | 64GB Micro SD/TF Card (FREE) |
| Data Storage Capacity | 64GB (Included) |
| Max External Memory | 256GB |
| Memory Card Type | Micro SD/TF (Class 10) |
| Required Reading Speed | Class 10 or higher |

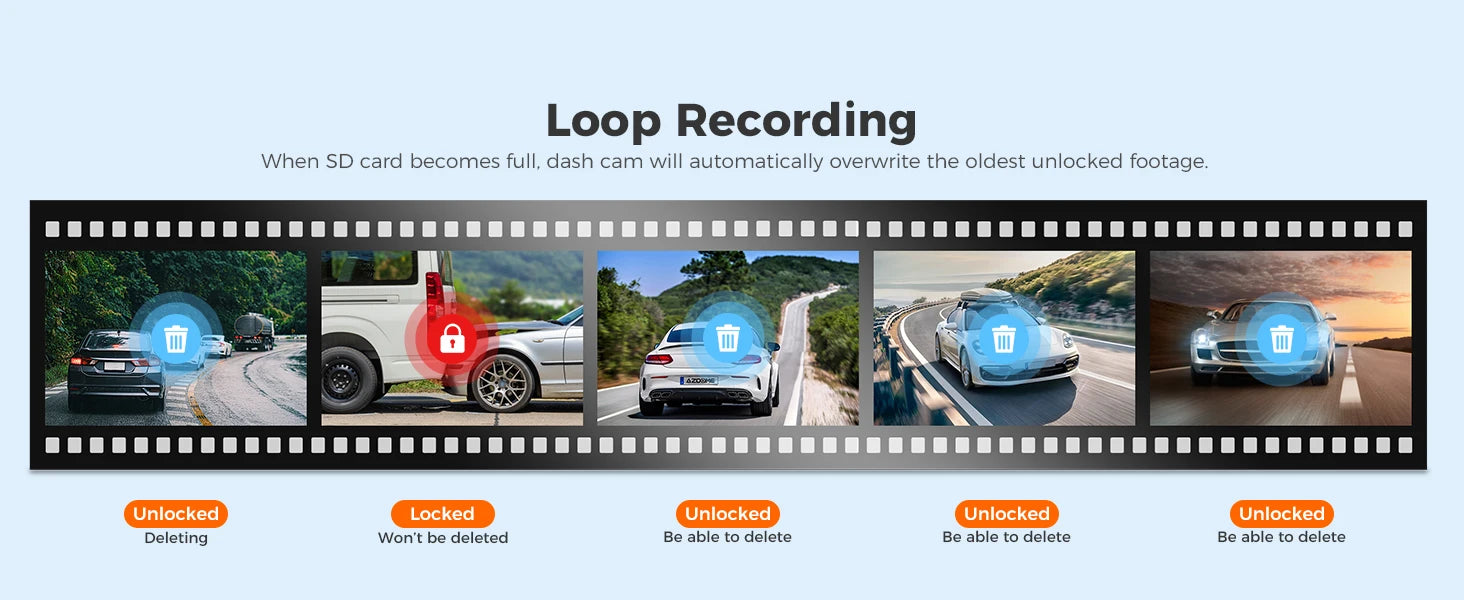

| Loop Recording | Yes (Auto-overwrite oldest footage) |
| Smart Features | |
|---|---|

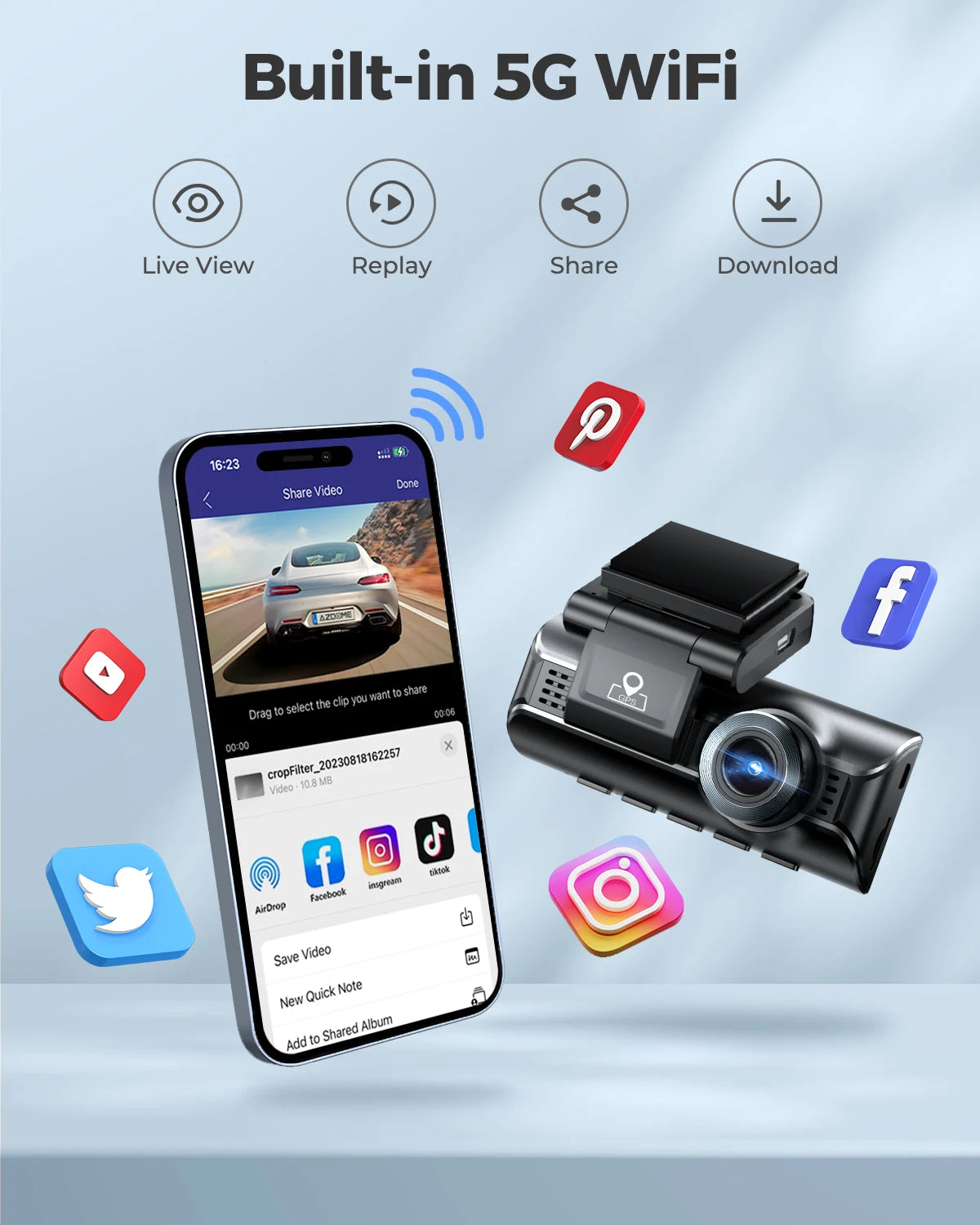

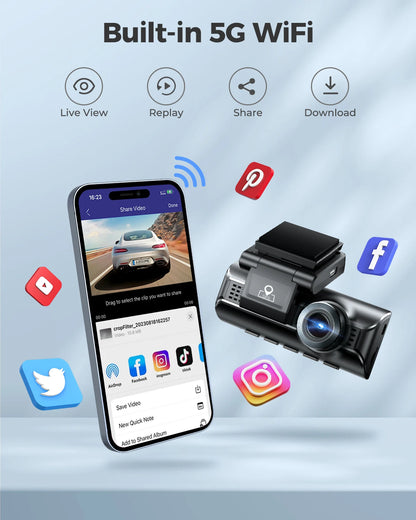

| WiFi Technology | 5.8GHz WiFi (4-6× faster than 2.4GHz) |
| Download Speed | 800MB video in ~10 seconds |
| APP Control | Yes (AZDOME App compatible) |
| Built-in GPS | Yes (Internal GPS Logger) |
| GPS Features | Speed, route, latitude, longitude tracking |

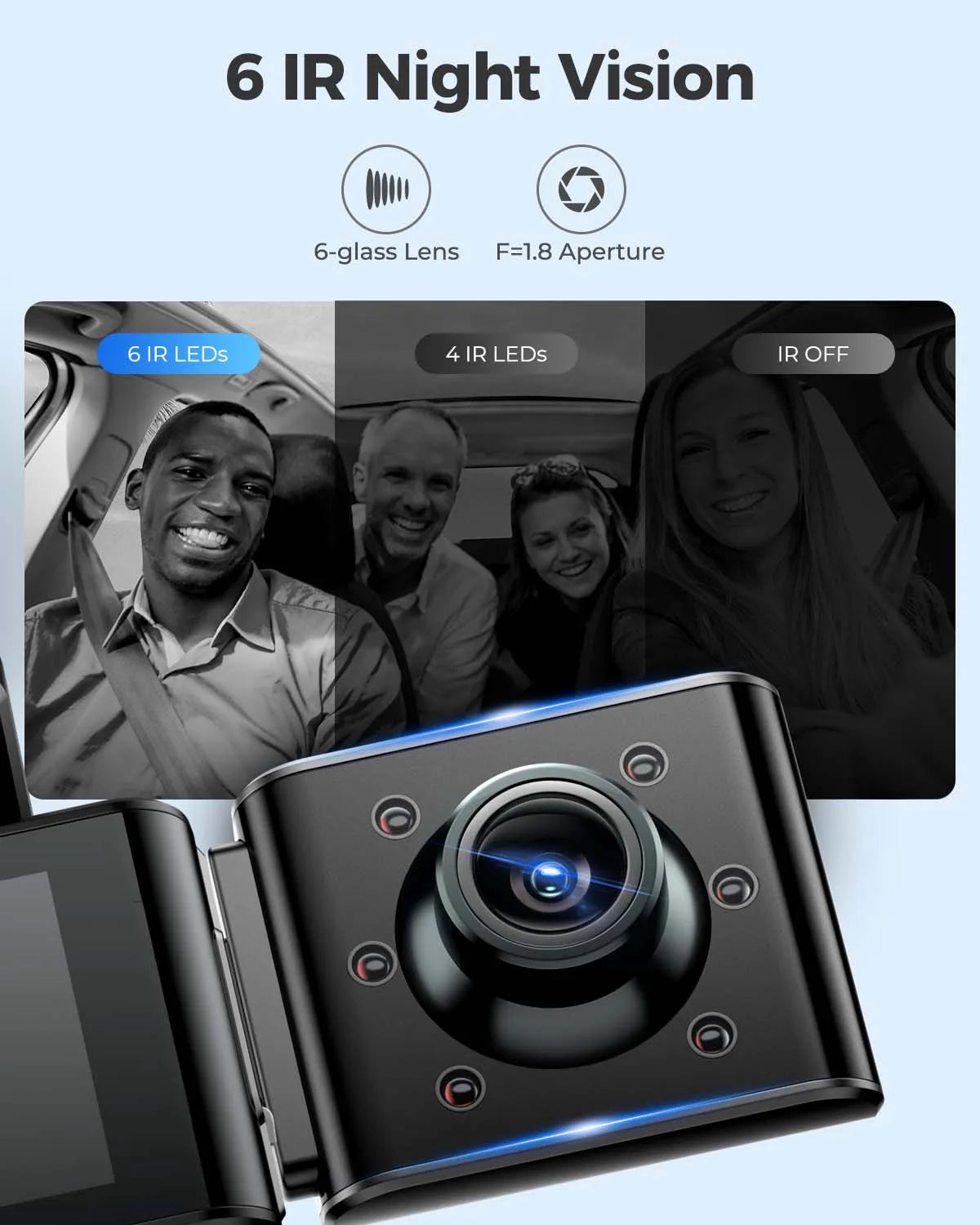

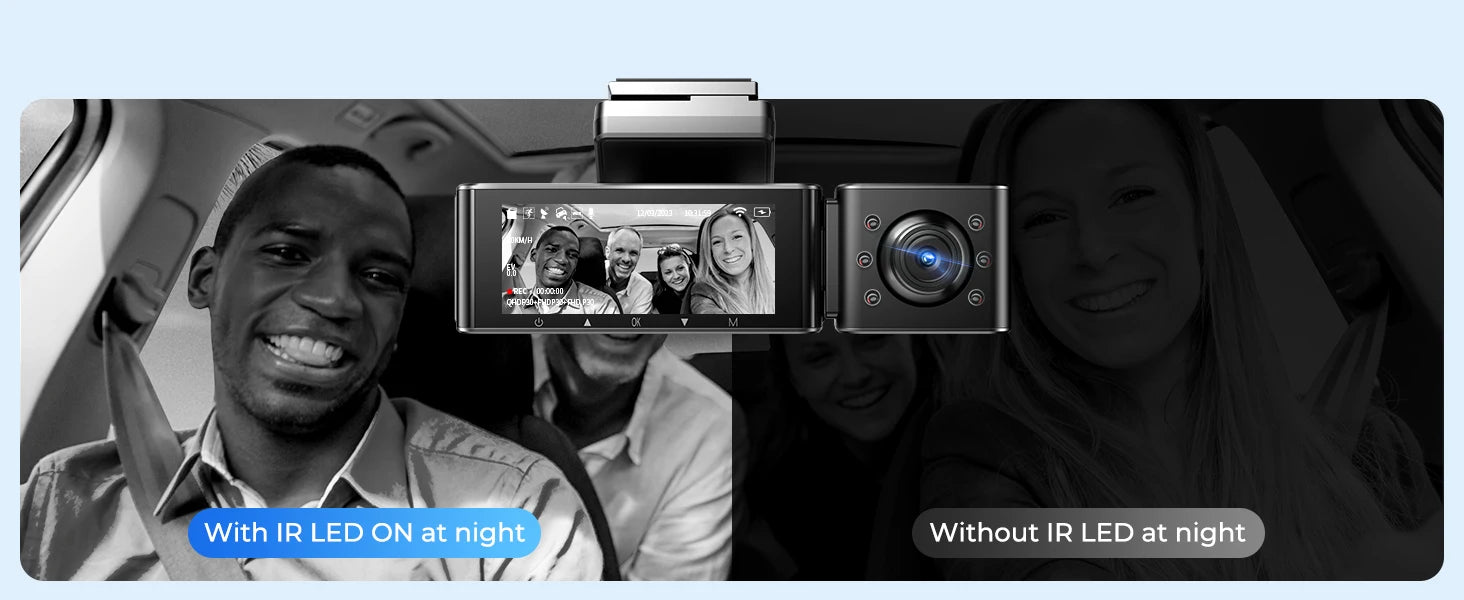

| Night Vision | IR Night Vision (Infrared) |
| WDR Technology | Yes (Wide Dynamic Range) |

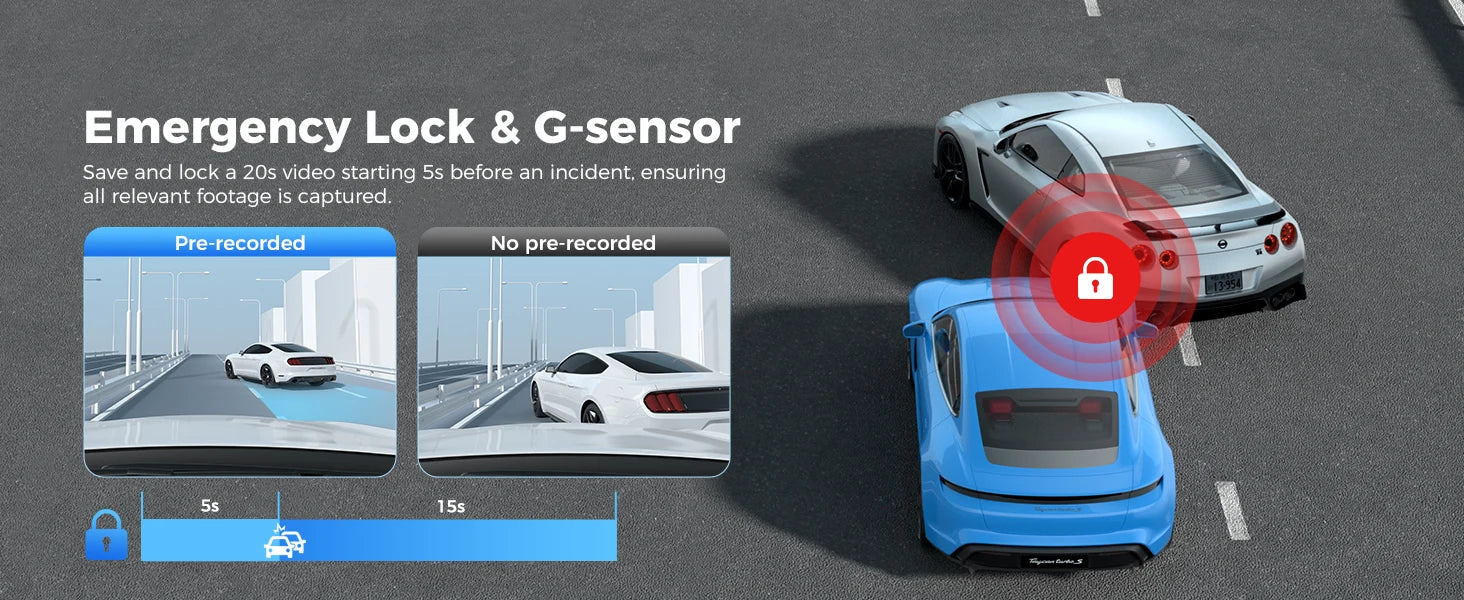

| G-Sensor | Yes (Collision Detection) |
| Parking Monitor | 24-Hour with 2 modes |
| Power & Durability | |
|---|---|
| Power Source | Corded Electric (Must be continuously connected) |
| Battery Type | Super Capacitor (No battery) |
| Wireless Operation | No - Requires continuous power connection |
| Working Temperature | -20°C to 70°C (-4°F to 158°F) |
| Waterproof | Yes (Rear camera) |
| Anti-Vibration | Yes |
| Technical Details | |
|---|---|

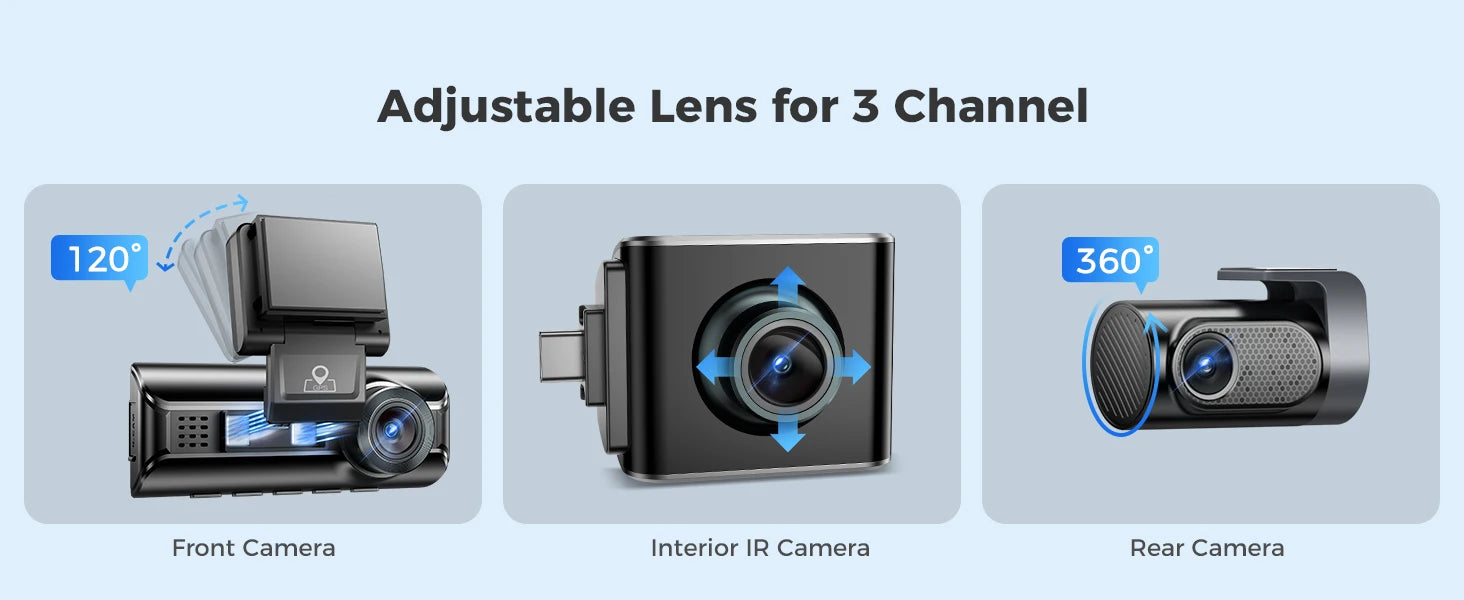

| Number of Lenses | 3 (Front + Interior + Rear) |
| Built-in Screen | Yes (IPS Display) |
| Audio Recording | Yes |
| Assembly Mode | Portable Recorder |
| Interface | USB 2.0, WiFi, AV-In, Micro SD/TF |
| Batteries Included | Super Capacitor (built-in) |
| Language Support | |
|---|---|
| OSD Languages | English, Chinese (Simplified/Traditional), Japanese, French, Spanish, Russian |
| Package Contents | |
|---|---|
| Main Unit | 1 × AZDOME M550 Pro Front Camera |
| Interior Camera | 1 × 1080P Interior Camera (3CH only) |
| Rear Camera | 1 × 1080P Rear Camera |
| Memory Card | 1 × 64GB Micro SD/TF Card (FREE) |
| Accessories | Car charger, cables, crowbar tool |
| Documentation | User manual, GPS player software |
| Note | Hardwire kit sold separately |
